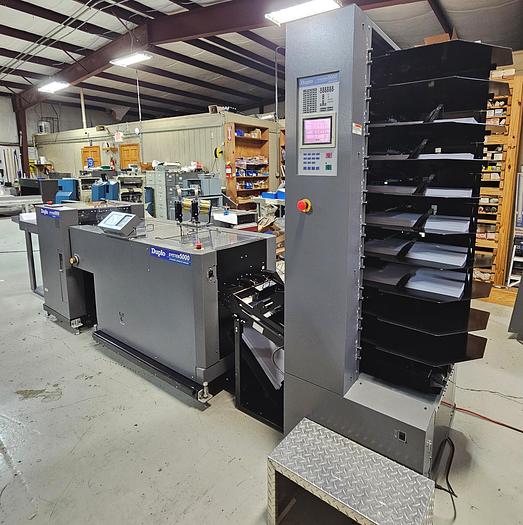

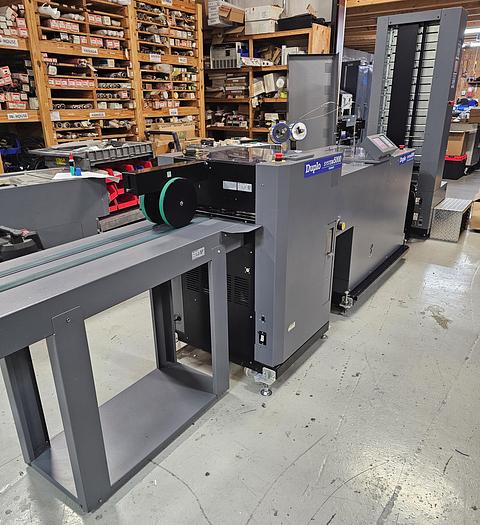

Duplo 5000 with 1 Tower, 2008 Video
No longer available
Duplo 5000 with 1 Tower, 2008 Video
$20,000 (USD)
Description
Duplo 5000 with 1 Tower, 2008

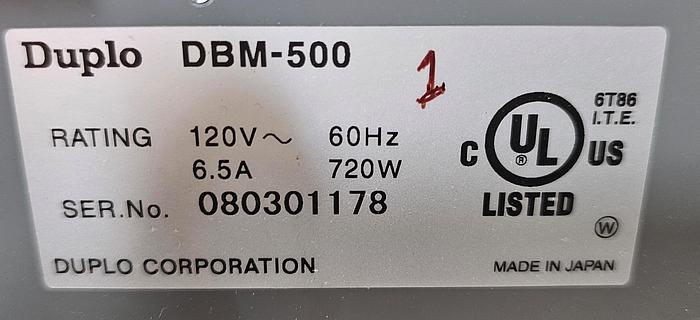

Serial #080301178
Specifications
| Manufacturer | Duplo |
| Model | 5000 |
| Year | 2008 |
| Condition | Used |
| Serial Number | 080301178 |
| Stock Number | 3106 |
| Signature Bookletmaking application | Sheet Size Min. 4.72" x 6.7" Max. 14" x 20" |
| Paper Capacity | Up to 25 sheets |
| General | Speed: Up to 5,000 sets per hour |
| Detections | Wire draw detection |
| Number of stitching heads | 2 Hohner |
| Stitch Positions | Saddle, corner, side, none (fold only) |
| Programmable Memory Settings | 12 |
| Automatic Functions | Stitcher heads, back jogger, side guides, stitch stopper, fold stopper, fold-back stopper positions, small booklet adjustments, fold roller gap, conveyance roller position, center reference, disengage the operator side stitching head when corner stitching |
| Electrical | 120V 60Hz 6.5A |
| Dimensions | 64” x 28” x 40” |
| Weight | 908 lbs. |

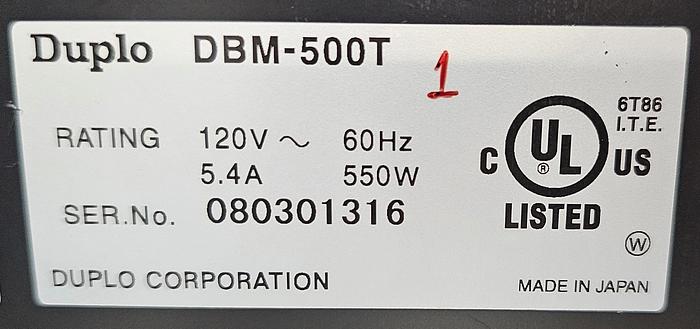

| DBM-500T Specifications | Trimming Mechanism: Upper and lower shearing action |
| Booklet Sizes | Min. 4.72" x 3.35" Max. 14" to 10" |
| Trimmed Booklet Sizes (Min./ Max) | 4.72” x 3” to 14” x 10” |
| Trim Margin | Up to 1" |
| Speed | Up to 5,000 sets per hour |
| Electrical | 120V 60Hz 10A |
| Dimensions | 23” x 27.5” x 43 |
| Weight | 532 lbs. |
| Collator DC-10/60 Specifications | Paper Size: Min. 4.72” x 5.52” to Max. 14” x 20” |
| Paper Weight | 11 lb. to 12-pt. cover |
| Bin Capacity | 2.5" |
| Detections | Double-feed, misfeed, paper jam, paper transport jam, bin empty |
| Speeds | Bookletmaking - up to 5,000 sets per hour Collating - up to 10,000 sets per hour |
| Feed System | Vacuum belt with air sheet separation |
| Electrical | 120V 60Hz 9.5A |
| Dimensions | 25” x 30” x 78” 49” x 30” x 78” when connected to the lift unit |
| Weight | 705 lbs. |
| Unique id | 20240908DNC080301178 |
