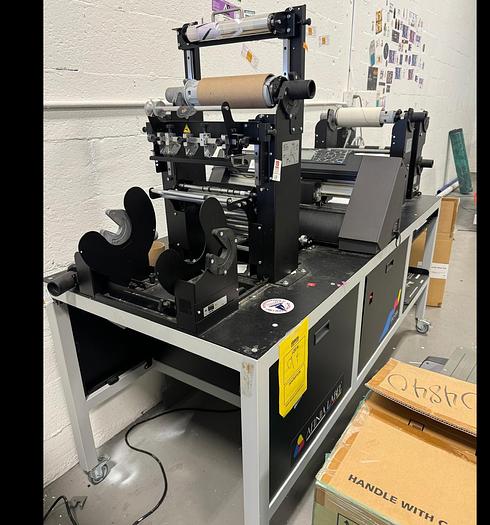

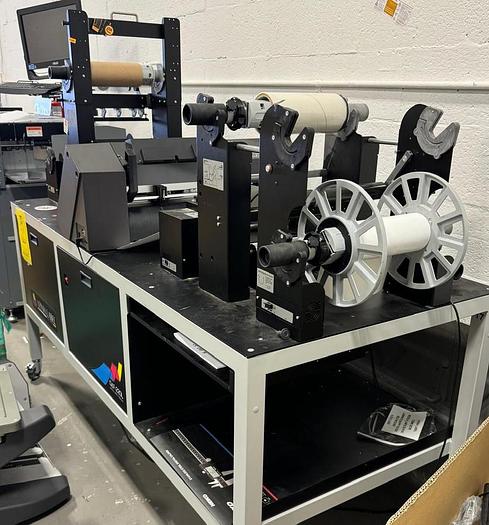

Afinia DLF-220L Digital Label Finisher
![Used Afinia DLF-220L Digital Label Finisher](https://i.machineryhost.com/43baa6762fa81bb43b39c62553b2970d/41dbf8f0fdd29a685af2deaa35203f8c/large-used-afinia-dlf-220-l-digital-label-finisher.jpg)
No longer available
Afinia DLF-220L Digital Label Finisher
$10,000 (USD)
Description
Afinia DLF-220L Digital Label Finisher

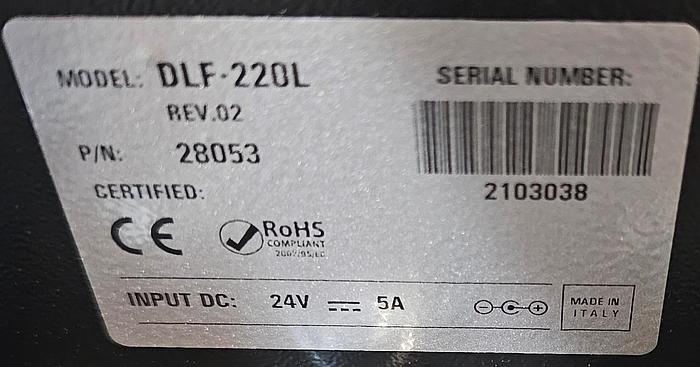

Serial #2103038
Specifications
Manufacturer | Afinia label |
Model | DLF-220L |
Condition | Used |
Serial Number | 2103038 |
Stock Number | 3088 |
Plotter Specifications | Data interface USB 2.0 |
Linear cut speed | Dependent on graphic 2 squares across 80x80 mm (3.15”x3.15”) = 34 labels per min. |
Programmable Cutting Force | 20 gf - 300 gf in 31 steps (Max 300 gf) |
Test Cut Function | Yes |
Cut to registration | Single point registration black-mark (4 mm (0.16”) square) |
Cut ability | Both printed and unprinted media |
Interface & Software | DLF-220 Software (Windows OS) cutter management tool. Plug-ins for CorelDraw and Adobe Illustrator. |
Power requirements | 100-240 VAC, 240 watts |
Other Specifications | Input / Output max. roll diameter 9.84" |
Minimum media width | 4.33" |
Maximum media width | 8.86” |
Maximum cutting width | 7.87" |
Minimum slitting width | 0.75” |
Number of slitting blades | up to 12 |
Lamination module | Yes |
Roll core size | 3" |
Minimum / Maximum label length | 0.39”/17.7" |
Maximum media thickness | 10 mil |
Maximum cut speed | (24 in/s) in all directions |
Dimensions | 78.74" L x 27.56" W x 57.06" H Weight: 518 lbs. |
Unique id | 20243005DNC2103038 |
